SWING CHECK VALVE

BOLTED COVER CAST CARBON , STAINLESS OR ALLOY STEELSIZE:- 2″ -24″, ASME CLASS:- 150# – 600#

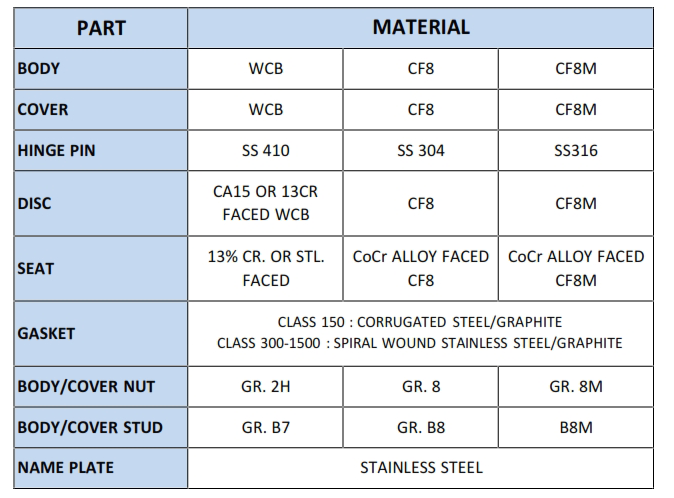

swingtable1

DESIGN FEATURES

  • Trims:- 13% Cr Hinge Pine, 13 Cr faced Disc and CoCr alloy faced Seat API Trip 8 Suitable for Applications up to 850° F (454° C).
  • Disc Assembly:- Non-rotating disc is fastened securly to disc hanger with a lock nut and cotter pin. Disc hanger is supported on a sturdy disc carrier hinge pin of excellent bearing qualities. All parts accessible from the top for easy servicing.
  • Disc:- One piece Construction to withstand the severe shock of check valve service. Hardfaced with 13% Cr., CoCr alloy, SS 316 or Monel, Ground and lapped with seat.
  • Body and Bonnet Joint accurately Machined. Spiral Wound with Different Grade of Material.
  • Body and Cover casting are precision Machined.
  • Flanges : Finish 125-250 AARH for all Valves. ASME Classes 150-300 : 2 mm raised face ASME Classes 600-up : 7 mm Raised faced
  • RTJ available on client requirement
  •

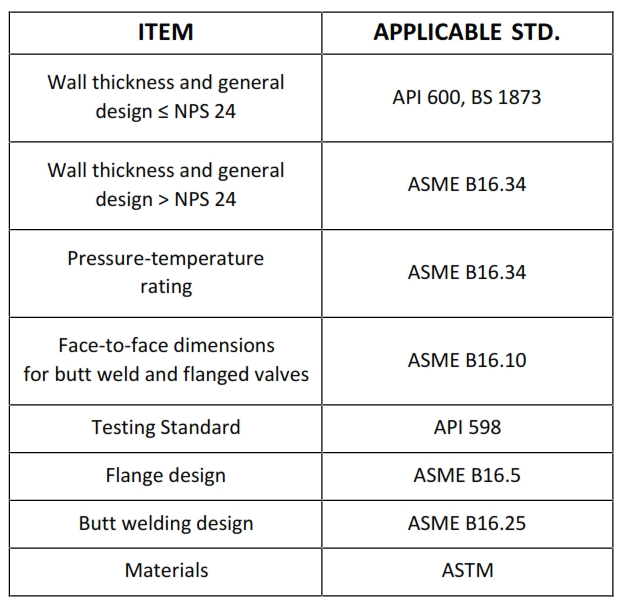

swingtable2

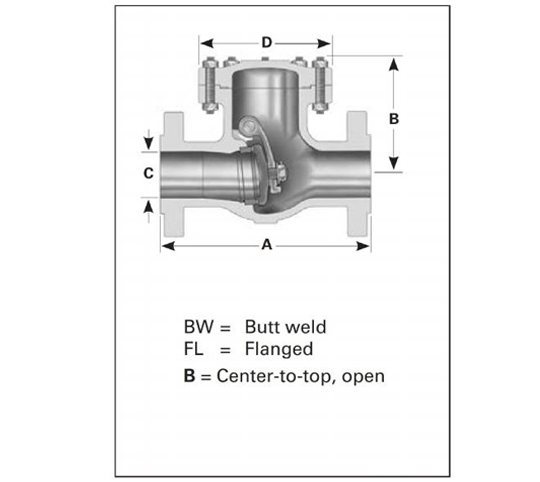

swingalt

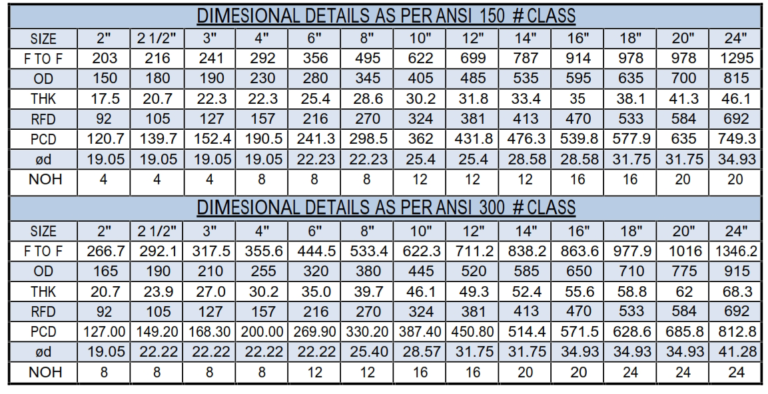

swingtable3
