GLOBE VALVES

DESIGN FEATURES

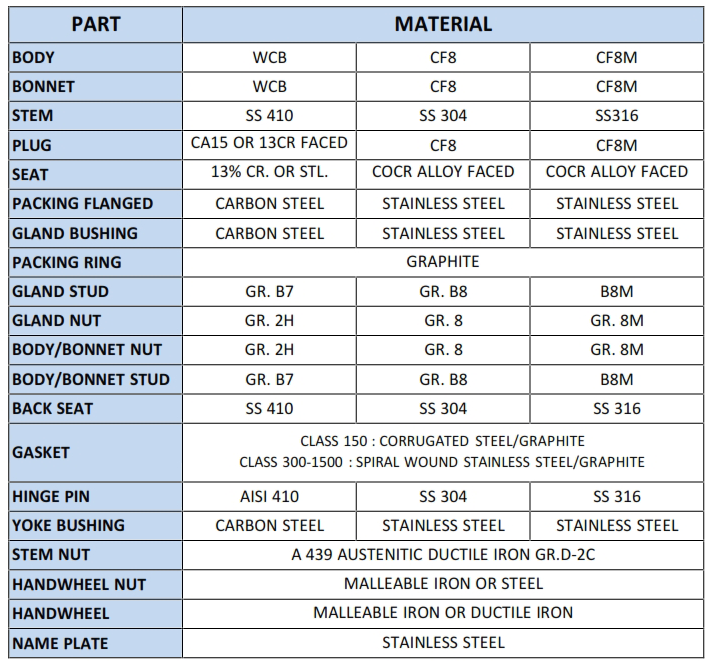

Trims:- 13% Cr Stem, 13 Cr faced Plug and CoCr alloy faced Seat API Trip 8 Suitable for Applications up to 850° F (454* C)
Tapered Disc accurately mates the hardfaced surface of the disc with the surface of the seat, Hardfaced with 13% Cr., CoCr alloy, SS 316 or Monel, Ground and lapped with seat.
Non-Rotating stem with precision acme Threads and Burnished finish. Double Acme For Faster Operation
Body and Bonnet Joint accurately Machined. Spiral Wound with Different Grade of Material.
Body and Bonnet casting are precision Machined. one-piece bonnet for better allignment and fewer parts.

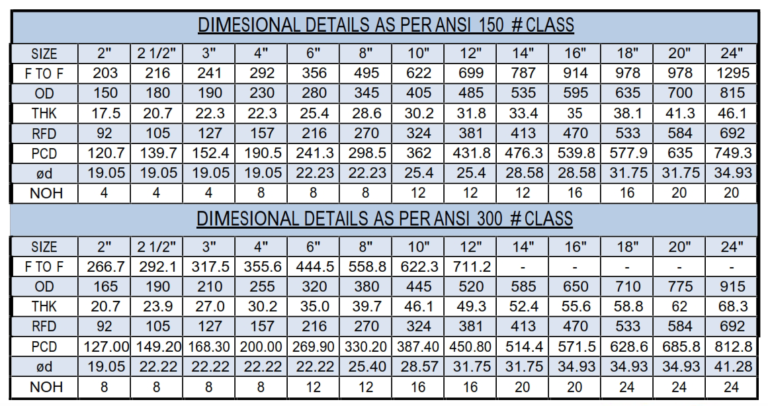

Flanges : Finish 125-250 AARH for all Valves. ASME Classes 150-300 : 2 mm raised face ASME Classes 600-up : 7 mm Raised faced
RTJ available on client requirement
Rotating stem nut is austenitic Ductile iron Gr.D-2C renewable in line.
